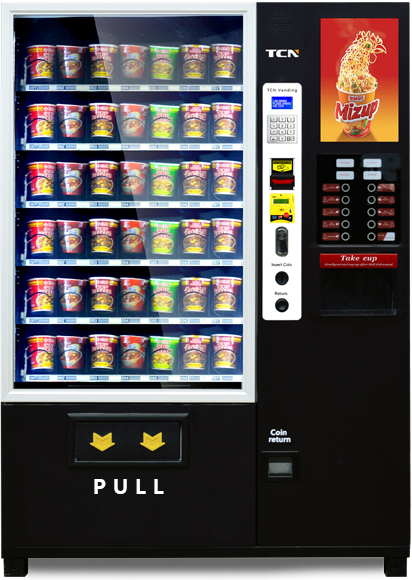

TCN-NDL-60G-C4

Features

1.4 cold 4 hot,instant drink.

2.High strength & powder coated cabinet with fully insulated material, energy efficient vending unit.

3.Secure door with wrap-around enclosures and LED lighting.

4.Triple glazed viewing window.

5.Dual spirals on chip trays.

6.Each tray tilts down 45 degree for fast & easy loading.

7.Adjustable tray partition and height.

8.Secure /lockable cash box.

9.With temperature sensor (4 to 25 degrees Celsius adjustable) Modular cooling system, easy to maintain.

10.With drop sensor/Vend Assure TM / vend sensors/guaranteed delivery system. (holds credit until product is delivered).

11.GPRS remote monitoring system, delivers real time live information.

12.Glass Heater embedded on glass to prevent condensing of moisture.

13.Excellent capacity and size ratio.

14.Flexible layout for snack,fresh food,cans and bottles.
15.Energy efficient compressor,etc.
16.Cooling system with R134a refrigerant,can meet the ROHS requirement.

Sustainability

Cafes,Canteens,Hospitals,Hotels,Schools,Subway,Supermarket,Malls,meeting rooms,stores,professional studios,waiting rooms etc.

TCN Remote Management System
TCN remote management system is a cloud-based web manageability service

that can be accessed from anywhere on any compatible devices including PC, smart phones, tablets and so on to remotely manage and monitor your clusters of vending machines in disperse locations.



With TCN remote management system service, the vending operators can manage their vending machine in more efficient and profitable manners, benefited from the comprehensive and easy-to-use features with

real-time data, such as centralized inventory management, consolidated sales management and tracking, cash collection trace ability, stock replenishment management. All of these means less loss, less cost, more

efficiency, and more profits.

Electronics

*Electronic multiple pricing accessed through keypad-(Flexible Individual Pricing).

*Full diagnostic program accessed through keypad.

*Full unit and value line by line sales audit.

*Illuminated scrolling message display.

*Compatible with all leading MDB electronic change giving coin mechanisms, cashless and telemetry systems.

*Integral, push button, mains safety circuit breaker.

*24v DC Motors, Motorized Vending Mechanism.

*Electrical supply, AC 85-265V, 50/60HZ.

Specifications

Model  TCN-60G-C4(19SP)
Name Combined Coffee Vending Machine
Outside Dimensions  H: 1940mm, W: 1396.5mm, D:790 mm
Weight 440kgs
Merchandise reserve  60 choices
Storage Capacity  About 350-1050 pcs(according to size of  goods)
Interior Storage 6 drawers
Cooling temperature  4-25°C (adjustable)
Coffee machine maximum power  1800 W
Warm water barrels capacity  1.8 L
Cold water barrels capacity  1.9 L
Raw material barrel 4 pcs
Cup quantity 130-140 pcs (6.5-9.00 ounce)
Sale type 4 kinds of hot drinks,4 kinds of cold  drinks
Advertising machine 22 inches advertisement display screen

(Optional equipped touch screen)

Supply water way Pumping or external water
Electricity AC 100-24V,50/60HZ
LCD Screen 19 inches
